Description

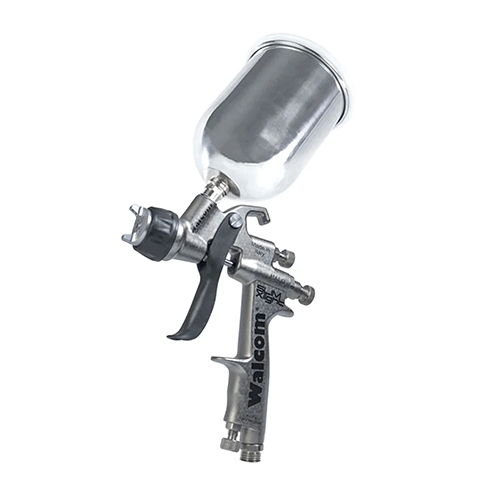

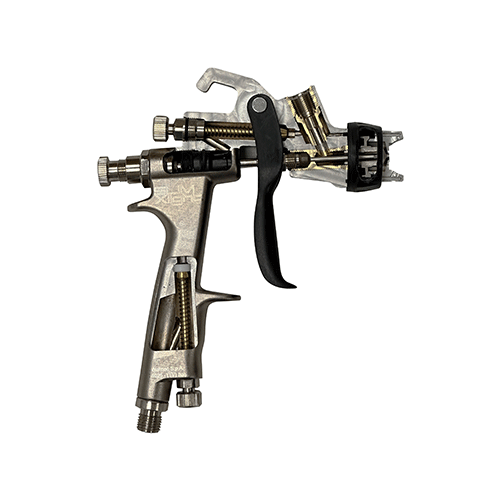

The spray gun is constructed with an air valve and needle on a single axis to provide higher performance and greater maintenance simplicity.
Body: chemically nickeled aluminum – matte finishing
Trigger: PPA & fiber glass
Aircap ring: PA & fiber glass
Nozzle: AISI 303 stainless steel
Needle-spring: stainless steel
Seal gaskets: PTFE (Teflon)
Weight: 455 g
Operating air pressure: range 0.5 – 2.5 bar (7.2 – 36 psi) / HVLP at 2 bar (29 psi)
Air consumption: 295 /min at 2 bar / 10 cfm at 29 psi
Nozzle Gravity feed: 1.0 – 1.1 – 1.2 – 1.3 – 1.4 – 1.5 – 1.7 – 1.8 – 1.9 – 2.2 – 2.5
Air inlet pressure regulator with pressure gauge
